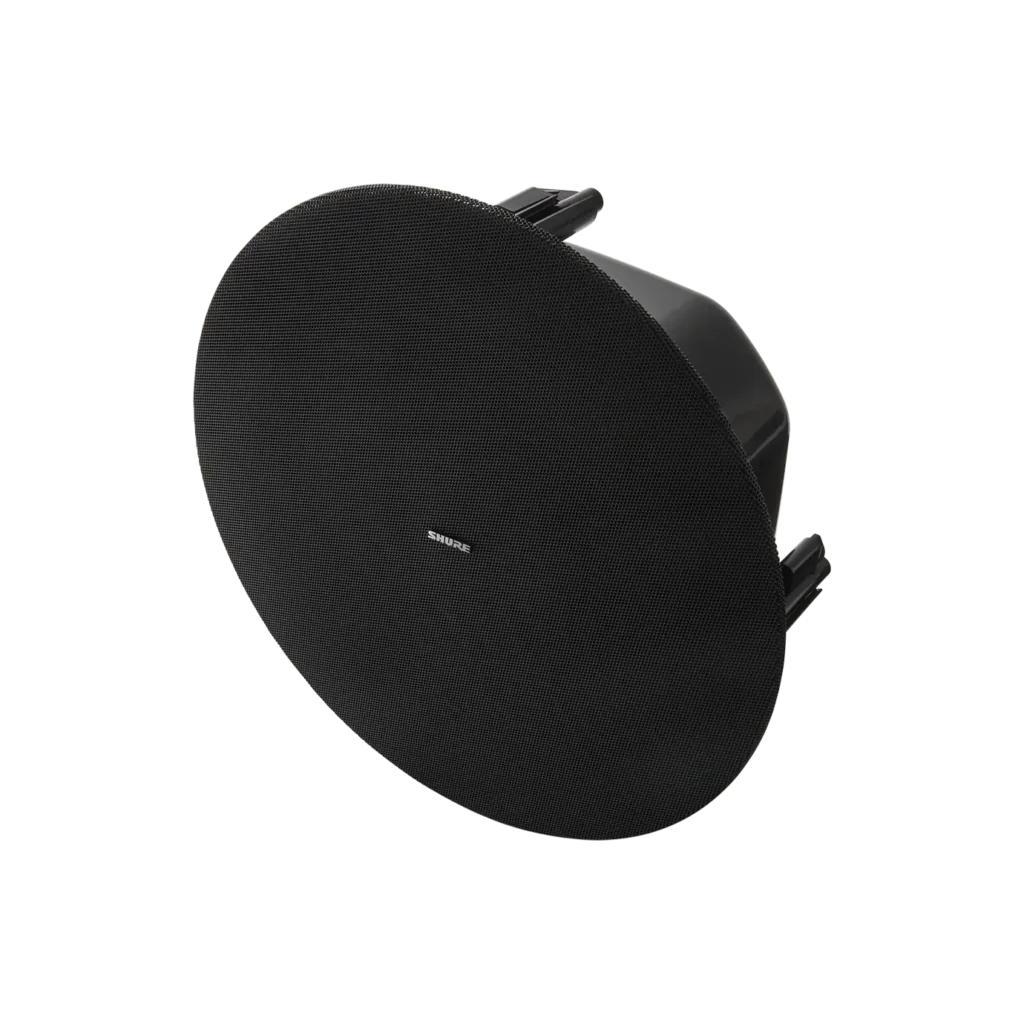

MXP-5 Ceiling-Mount Passive Loudspeaker
The MXP-5 is a shallow-depth, ceiling-mount passive loudspeaker designed for retrofit installations in meeting rooms. Featuring dual-driver architecture, it delivers premium audio reproduction with outstanding speech intelligibility. With identical voicing to the MXP-6 Pendant Loudspeaker, it ensures consistent tonality across blended installations. Compact and versatile, the MXP-5 integrates seamlessly into the Shure Microflex Ecosystem for a complete conferencing solution.
Product Specifications
Audio Performance
Dual-driver design for full-fidelity sound and speech clarity
4-inch main driver with vented motor for high power handling
1-inch neodymium tweeter with heatsink fins for efficiency
Consistent voicing with MXP-6 Pendant Loudspeaker for blended setups
System Integration
Supports up to 8 MXP-5 loudspeakers with MXN-AMP PoE+ amplifier in 70/100V mode
MXN-AMP provides optimized presets and user-configurable EQ per channel
Shure Audio Encryption ensures secure transmission across Microflex Ecosystem
Design & Installation
Shallow depth, ideal for retrofit or low-ceiling spaces
Same diameter as MXA901 ceiling array for symmetrical room appearance
Front faceplate switch for 70/100V or 8 ohm operation
Optional A-MXP-5-TB Tile Bridge and A-MXP-5-NCB Bracket for flexible installation
Safety tether recommended for overhead mounting
Compatibility
Certified for Microsoft Teams
Fully integrated with Shure Microflex Ecosystem
