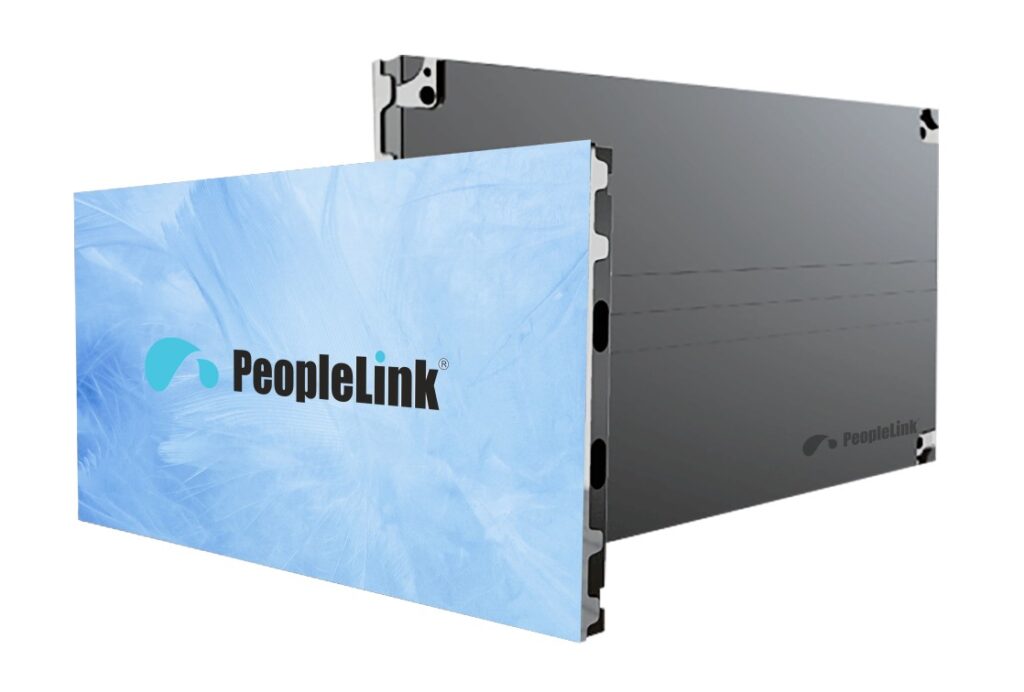

PeopleLink Active LED-P 1.5MM COB
The PeopleLink Active LED – P 1.5MM COB is a high-performance indoor LED display engineered for exceptional visual clarity and reliability. With its COB (Chip-on-Board) technology, customizable brightness, ultra-high refresh rate, and wide color gamut, it delivers immersive, shadow-free visuals across a variety of professional settings. Its modular design, patented coating, and advanced calibration make it an efficient, durable solution for conference rooms, studios, control centers, and home cinemas.
Product Specifications
Pixel Pitch: 1.56 mm
Pixel Density: 409,600 pixels/m²
Cabinet Resolution: 384 x 216
LED Packaging Type: COB (Chip-on-Board)
Brightness: 600–1000 nits (customizable)
Refresh Rate: Up to 3840 Hz
Viewing Angle: 160° (H) / 160° (V)
Contrast Ratio: 5000:1
Color Temperature: 3000K – 10000K
Gray Scale: 14–16 bit
Colors Supported: 16.9 million
Cabinet Size: 600 x 337.5 mm
Cabinet Weight: 7.5 kg
Power Consumption (Max/Avg): 350 W/m² / 100 W/m²
IP Rating (Front): IP65
Maintenance: Front access
Operating Temp: -10°C to +45°C
Storage Temp: -40°C to +60°C
Frame Rate: 50/60 Hz
Material: Die-cast aluminum cabinet
Module Size: 150 x 168.75 mm
