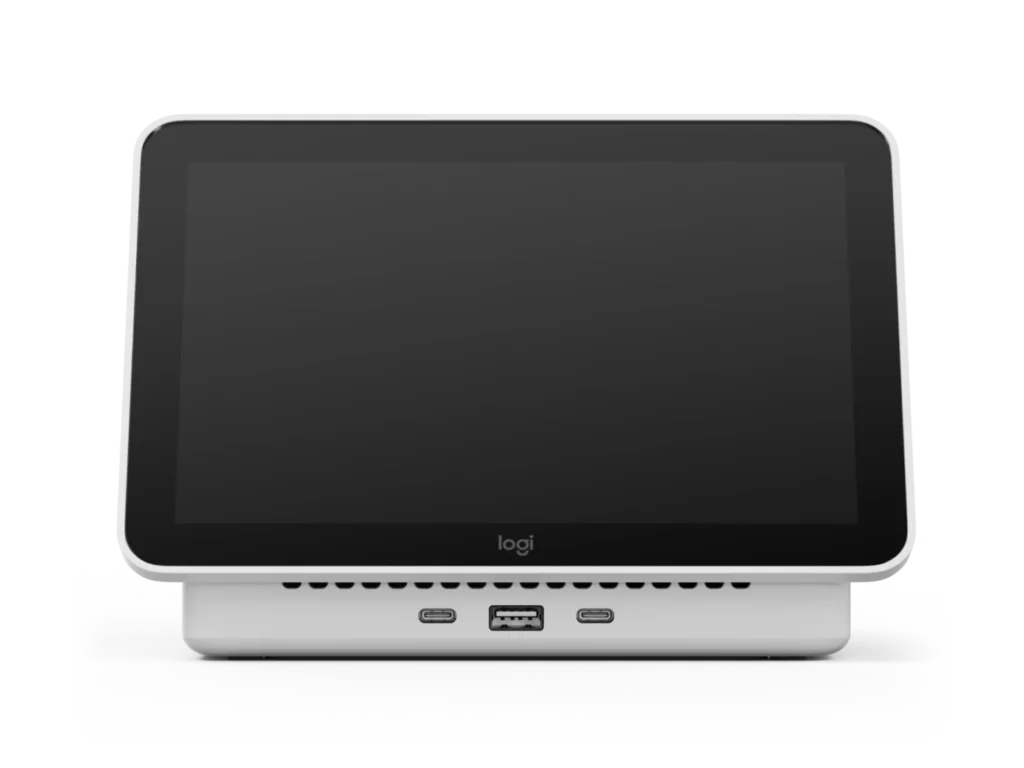

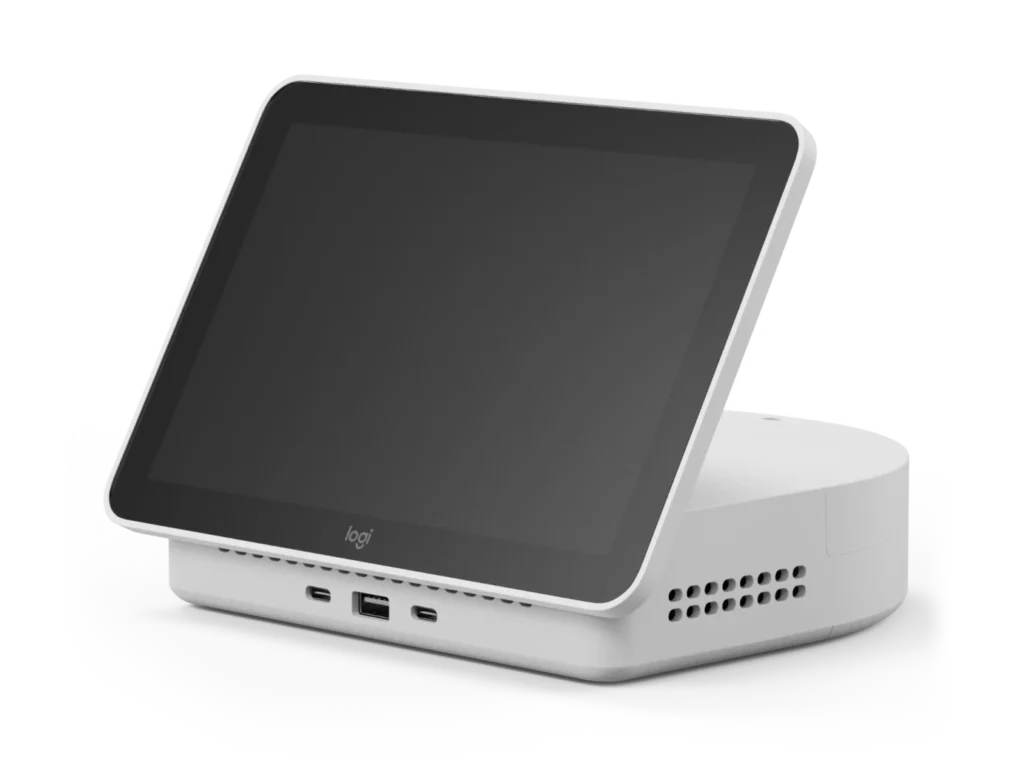

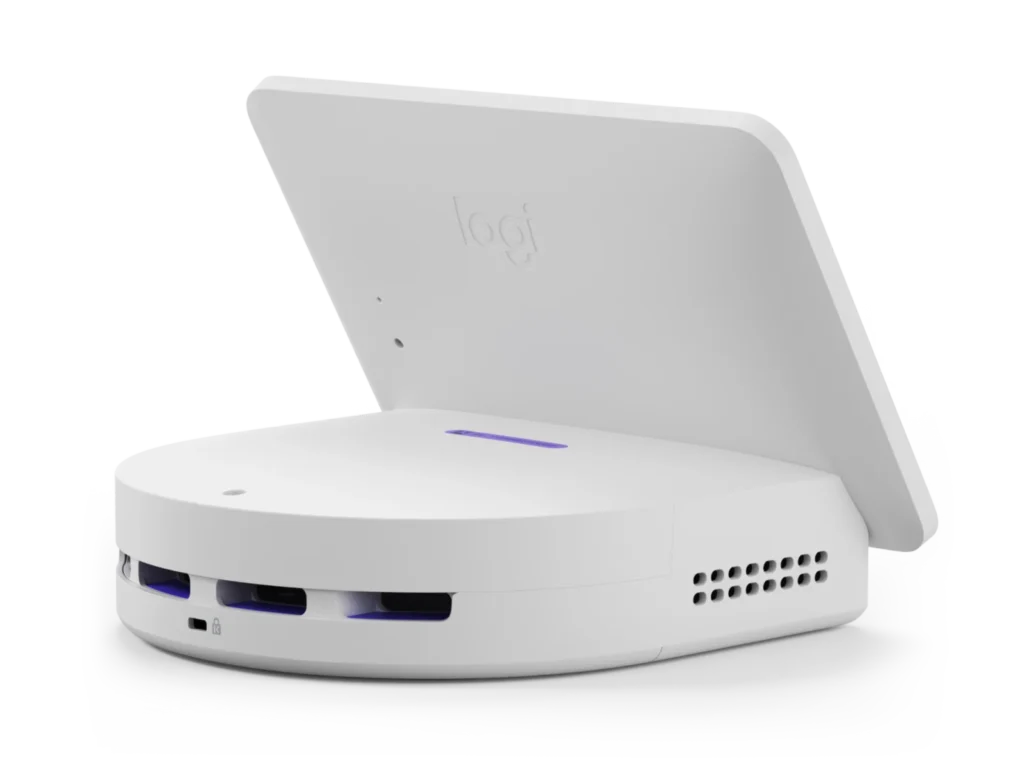

Logi Dock Flex

Managed docking station with built-in desk booking display

The Logi Dock Flex is a smart, managed docking station designed for hybrid workplaces. It supports easy desk booking, powers your laptop, and connects all your peripherals with a single USB-C cable—all while being managed via Logitech Sync for IT visibility and control.

Product Specifications

  • Part Number: 939-002180

  • Dimensions:

    • Height: 141.2 mm

    • Width: 201 mm

    • Depth: 176.9 mm

    • Weight: 1.0 kg

  • Ports – Front (User-Facing):

    • 2 × USB-C (7.5W each)

    • 1 × USB-A (7.5W)

  • Ports – Rear (IT-Managed):

    • 1 × USB-C (7.5W)

    • 2 × USB-A (7.5W each)

    • 1 × HDMI 2.0 (supports up to 4K @ 60Hz HDR)

    • 1 × DisplayPort 1.4 (supports up to 4K @ 60Hz HDR)

    • 1 × RJ45 Ethernet (10/100/1000)

    • DC power connection

    • 1 × USB-C laptop connection (up to 100W laptop charging)

  • Display Screen:

    • Size: 203.2 mm (8-inch diagonal)

    • Type: IPS LCD with LED backlighting

    • Resolution: 1280 x 800

    • Touch: 5-point multi-touch capacitive

    • Brightness: 300 nits

    • Contrast Ratio: 800:1

    • Anti-fingerprint oleophobic coating

    • Viewing Angle: 85° (U/D/L/R)

    • Tilt Angle: 60°

  • Appliance Ports & Interfaces:

    • Ethernet: 10/100 Mbps (via internal two-port switch)

    • Wi-Fi: 802.11 a/b/g/n/ac

    • Bluetooth 5.0 (inactive, reserved for future use)

    • Ambient light sensor

  • General Features:

    • Managed docking station with advanced cable retention

    • Kensington Lock Slot for security

    • Integrated with Logitech CollabOS

    • Managed remotely via Logitech Sync

  • Environmental:

    • Operating Temp: 0 to 40°C

    • Storage Temp: -40 to 70°C

    • Operating Humidity: 10–90%

    • Storage Humidity: 0–95%

  • Security:

    • Full Disk Encryption: AES-128

    • Data Encryption: Symmetric Keys, PKI

    • Device Identity: Protected by device attestation

    • Key Protection: Arm TrustZone, RPMP

    • Physical Security: Kensington Lock support

  • Sustainability:

    • Plastics: 36% certified post-consumer recycled plastic (excl. accessories & packaging)

    • Low-carbon aluminum construction

    • Paper Packaging: FSC™-certified

  • Compatibility:

    • Windows 10, Windows 11

    • macOS (two most recent versions)

    • Requires USB-C laptop port supporting:

      • USB Power Delivery 2.0+ (up to 100W charging)

      • USB 3.1 Gen 2+ (data transfer)

      • DisplayPort Alt Mode (video output)

  • Power:

    • AC powered

    • Supports up to 100W laptop charging via USB-C

  • Software Support:

    • Works with latest version of Logitech CollabOS

    • Manageable via Logitech Sync for IT teams

  • Warranty:

    • Standard: 2-year limited hardware warranty

    • Optional: +1-year or +3-year extended warranty available at purchase
