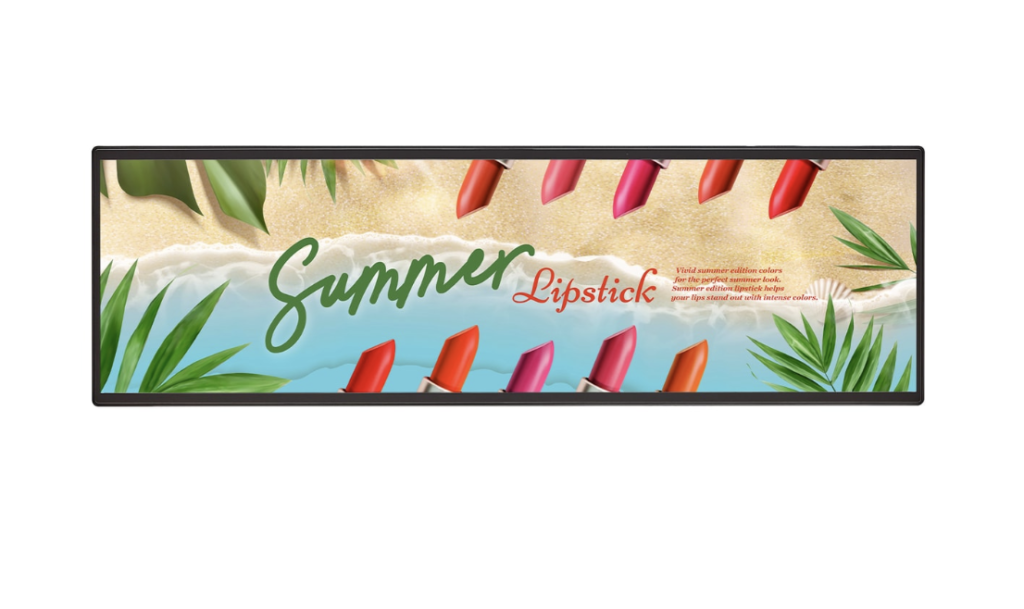

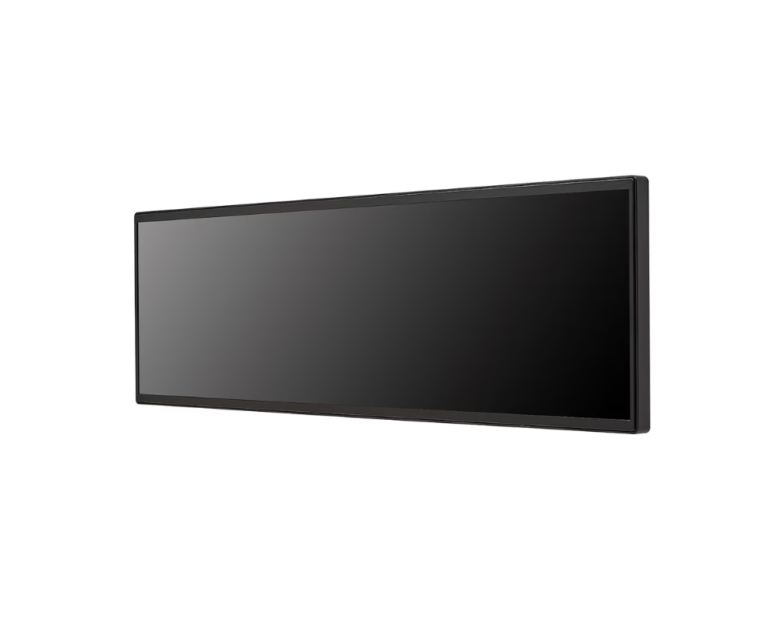

LG Stretch Signage – 37” Ultra-Wide Display (32:9)

The LG Stretch Signage is a 37-inch ultra-wide commercial display with a unique 32:9 aspect ratio and Full HD resolution (1920×540), built for dynamic and creative digital signage. With 700 nits of brightness, IPS panel, 24/7 operation, and support for both portrait and landscape modes, it’s ideal for retail shelves, transport displays, and tight spaces where traditional signage can’t fit. Powered by webOS 6.0 and equipped with versatile connectivity and software features, it delivers high-impact content with intelligent control and energy efficiency.

Product Specifications

Display

  • Screen Size: 93.98 cm (37″)

  • Aspect Ratio: 32:9

  • Panel Technology: IPS (ADS)

  • Resolution: 1920 × 540 (FHD)

  • Brightness: 700 nits (Typ.)

  • Contrast Ratio: 1000:1 (Static), 1,000,000:1 (Dynamic)

  • Refresh Rate: 60Hz

  • Color Gamut: NTSC 72%

  • Viewing Angle: 178° × 178°

  • Response Time: 14ms (G to G)

  • Color Depth: 8-bit, 16.7 million colors

  • Surface Treatment: 25% Haze

  • Lifespan: 50,000 hours (Min.)

  • Operation: 24/7, Portrait and Landscape supported

Connectivity

  • HDMI In: 2 (HDCP 2.2 / 1.4)

  • HDMI Out: 1

  • DP In: 1 (HDCP 2.2 / 1.4)

  • USB: 1 × USB 2.0 Type-A

  • LAN (RJ45): 1

  • RS232C: In (1), Out (1)

  • IR In: 1

  • Audio Out: 1

  • Daisy Chain: HDMI In/Out supported

Mechanical

  • Dimensions (W × H × D): 922.3 × 288.3 × 43.5 mm

  • Bezel Width (T/R/L/B): 15.6 / 9.3 / 9.3 / 15.6 mm

  • Weight: 7 kg (head), 9 kg (packed)

  • VESA Mount: 400 × 200 mm

  • Handle: Yes

Built-in Hardware

  • Internal Memory: 16 GB (eMMC)

  • Wi-Fi / Bluetooth: Yes

  • Sensors: Temperature, Auto Brightness, Acceleration (Gyro)

  • Local Key Operation: Yes

Software Features

  • OS: webOS 6.0

  • Content Management: SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS

  • Features:

    • Local & USB content scheduling

    • Failover support

    • Tile mode up to 15×15

    • Gapless playback

    • Auto Set ID & cloning

    • HDMI-CEC, Wake on LAN

    • SNMP, RS232C & Local Sync

    • Screen & Input Rotation

    • PBP (2 sources), Video Tag (4 tags)

    • Status mailing, Crestron Connected

    • BEACON, webRTC, Pro:Idiom

Power

  • Power Supply: AC 100–240V, 50/60Hz (Built-in)

  • Typical Consumption: 40W ±10%

  • Max Consumption: 50W

  • Smart Energy Saving: 30W (at 70%)

  • Standby / Off: 0.5W

  • BTU: 136.4 (Typ.), 170.6 (Max.)

Environmental

  • Operating Temperature: 0°C to 40°C

  • Operating Humidity: 10% to 80%

  • Conformal Coating: Yes (Power Board)

  • Face-down Tilt Support: Yes (up to 30°)

Certifications

  • Safety: CB / NRTL

  • EMC: FCC Class B / CE / KC

Included Accessories

  • Remote Controller with batteries

  • Power Cord (1.55 m)

  • Quick Start Guide

  • Regulation Book

  • Phone to RS232C gender adapter

  • Power Cord Clip
