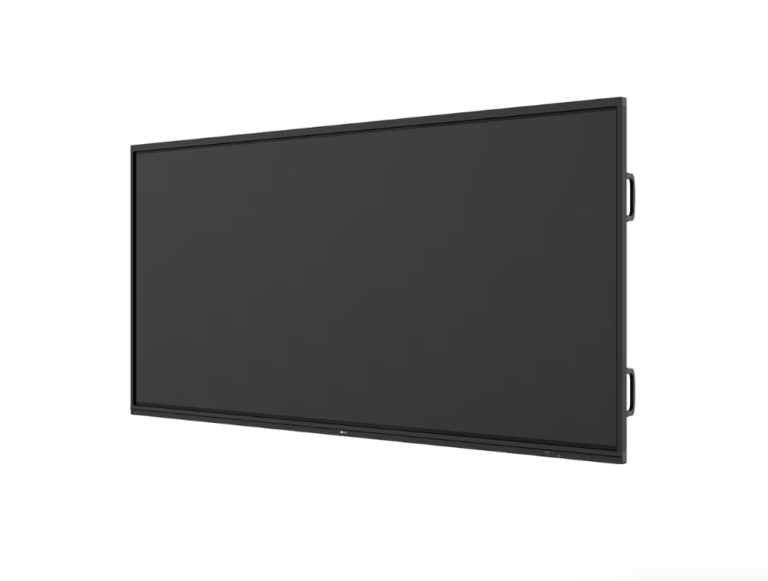

LG CreateBoard | 105” 21:9 Ultra-Wide Display (5K)

Model: 105-inch Direct View Display | Ideal for immersive collaboration & professional workspaces

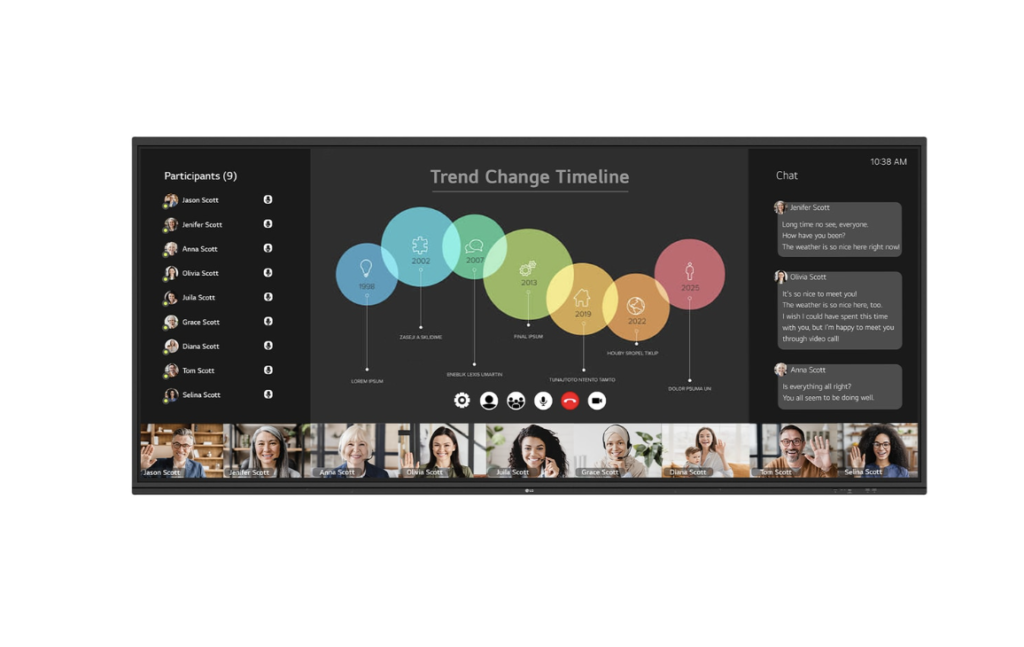

The LG CreateBoard 105” offers a striking 21:9 aspect ratio with 5K resolution (5120×2160), making it perfect for side-by-side multitasking, presentations, and interactive meetings. Backed by powerful connectivity, integrated speakers, and Android 13 OS, it is tailored for modern conference rooms and productivity zones that demand wide-screen clarity and smart features.

Product Specifications

Display

  • Screen Size: 266.7 cm (105″)

  • Panel Type: VA with Direct Backlight

  • Aspect Ratio: 21:9 Ultra-Wide

  • Resolution: 5120 × 2160 (5K UHD)

  • Refresh Rate: 60Hz

  • Brightness: 400 nits (typ., with glass)

  • Contrast Ratio: 4,000:1 (Static), 5,000:1 (Dynamic)

  • Color Gamut: 72% (NTSC)

  • Color Depth: 10-bit (1.07 Billion Colors)

  • Viewing Angle: 178° (H/V)

  • Response Time: 6.5 ms

  • Surface Treatment: Anti-glare (25% haze)

  • Lifetime: 50,000 hours (Min)

  • Orientation: Landscape only

Audio & Visual

  • Built-in Speakers: Yes (18W × 2 + 18W, total 54W output)

  • Touch Support: Yes (3x Touch USB Ports)

  • Picture Modes: PIP (1 external), PBP (4 source split)

Smart Features & OS

  • Operating System: Android 13 (webOS)

  • Screen Share: CreateBoard Share

  • Auto Brightness Sensor: Yes

  • Smart Energy Saving: Yes

  • Crestron Connected: Supported

  • Wake-on-LAN / Fast Power On: Yes

  • OPS Compatibility: Yes, with built-in power

Connectivity

  • HDMI In: 4x (HDCP 2.3)

  • HDMI Out: 1x

  • DP In: 1x (HDCP 1.4 & 2.3)

  • Audio In / Out: 1x each, + Optical SPDIF

  • USB Ports:

    • 6x USB 3.0 Type-A

    • 1x USB 2.0 Type-A

    • 2x USB Type-C

  • Touch USB: 3x

  • LAN In/Out: 1x each (RJ45)

  • RS232C In: Yes

Mechanical

  • Bezel Width: T/R/L/B – 29.8 / 19.5 / 19.5 / 41.2 mm

  • Product Dimensions: 2510.7 × 1129.9 × 91.7 mm

  • Weight (Net/Gross): 84.6 kg / 123.95 kg

  • VESA Mount: 1000 × 600 mm

  • Handle: 4 integrated handles

Power

  • Power Supply: AC 100–240V, 50/60Hz

  • Max Power Consumption: 560W

  • Typical Power: 315W

  • Power Off: <0.5W

  • Smart Energy Saving Mode: Yes

Certifications

  • Safety: IEC 62368-1, UL 62368-1

  • EMC: FCC Class A, CE, KC

  • Energy: Energy Star Certified

Accessories Included

  • Power Cord (3m), HDMI Cable (3m), USB A–B Cable (5m)

  • USB-C Cable (1.8m), 2× Writing Pens

  • Remote Controller with Batteries

  • Wi-Fi Module, Quick Start Guide, User Manual

  • Packing Carton
