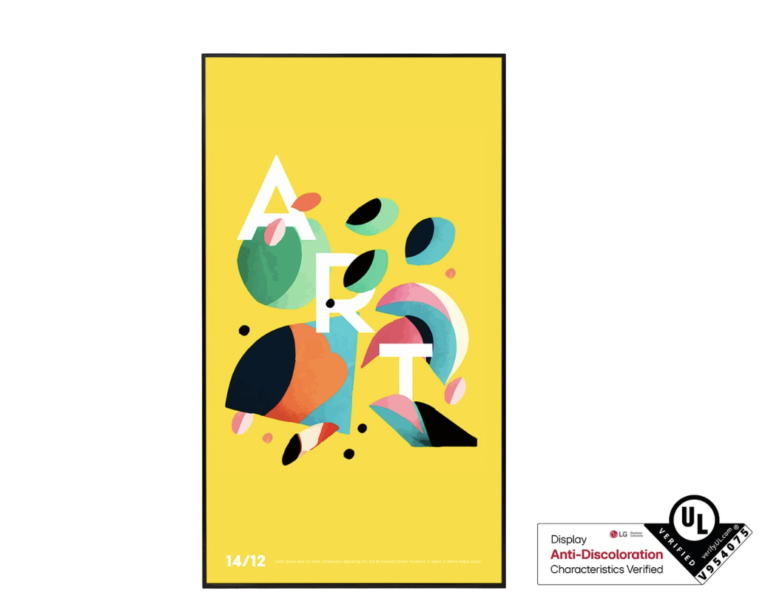

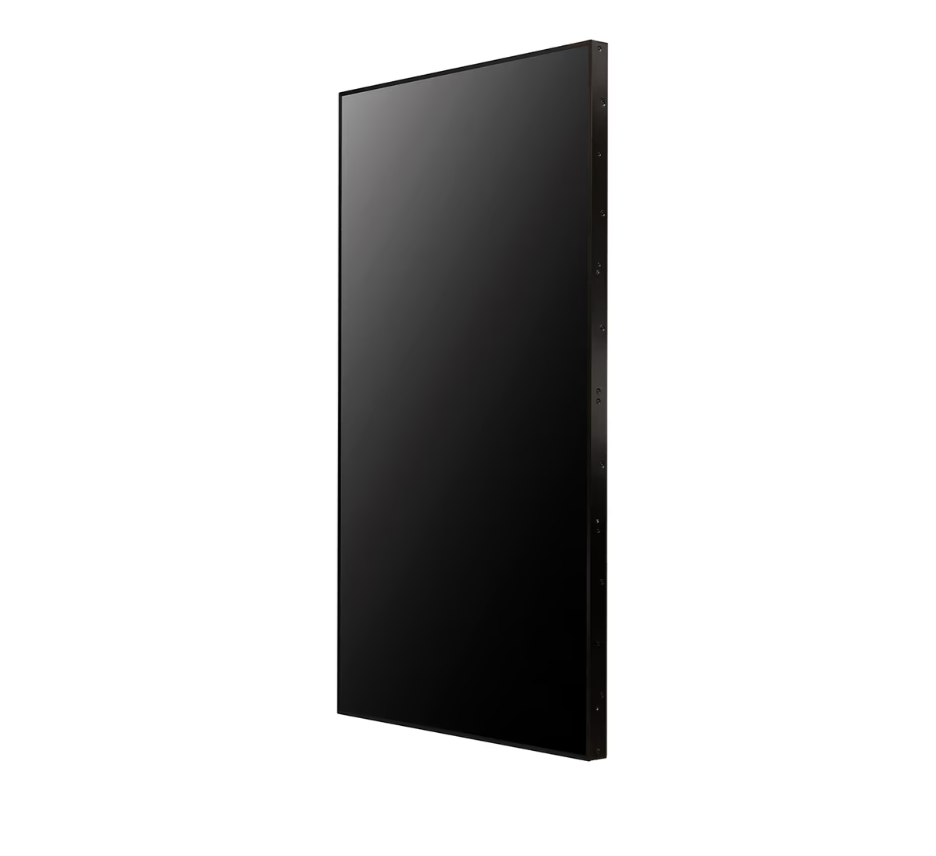

LG 75" Open Frame UHD Display (Model: 75-inch, IPS, webOS 6.0)
The LG 75″ Open Frame Display is designed for demanding 24/7 commercial environments. With 4K UHD resolution, 3,000 nits of typical brightness, and wide viewing angles, it ensures crisp and vibrant visuals in any lighting condition. Packed with smart signage features powered by webOS 6.0 and equipped with robust connectivity and environmental resilience, it suits both portrait and landscape modes for retail, transport hubs, or public signage.
Product Specifications
Panel
Screen Size: 189 cm (75″)
Panel Technology: IPS, M+
Aspect Ratio: 16:9
Native Resolution: 3,840 x 2,160 (UHD)
Refresh Rate: 60Hz
Brightness: 2,800 cd/m² (Min), 3,000 cd/m² (Typ)
Contrast Ratio: 1,200:1 (Typ), 500,000:1 (Dynamic)
Color Gamut: NTSC 72%
Color Depth: 10bit (Dithering), 1.07 Billion Colors
Response Time: 8ms (G to G BW) typ.
Viewing Angle: 178° × 178°
Surface Treatment: AGLR (Haze 3%), QWP
Lifetime: 50,000 Hours
Operation: 24 Hours/Day
Portrait / Landscape: Supported
QWP (Quarter Wave Plate): Yes
Mechanical
Bezel Color: Black
Bezel Width: 11.8 mm (Even)
Dimensions (W × H × D): 1,675.2 × 953.6 × 114.6 mm
Weight (Net / Packed): 32.7 kg / 43 kg
Handle: Yes (x2)
Carton Dimensions: 1,816 × 1,106 × 285 mm
Hardware Features
Internal Memory: 8GB eMMC
Sensors: Temperature (x2), Humidity, Auto Brightness
Software Features (webOS 6.0)
Local Content Scheduling
Group Manager
USB Plug & Play
Fail Over & No Signal Image
RS232C & Local Network Sync
Video Tagging (x4), URL Playback
Screen & External Input Rotation
Gapless Playback & Tile Mode
Cloning, SNMP, ISM Method, Auto Set ID
Status Mailing, Control Manager
Smart Energy Saving, PM Mode, Wake on LAN
HDMI-CEC, webRTC, Pro:Idiom, SI Server Setting
Environment
Operating Temperature:
With Solar Filter: 0℃ to 40℃
Without Solar Filter: 0℃ to 50℃
Operating Humidity: 10% to 80%
Power
Power Supply: AC 100–240V, 50/60Hz
Power Type: Built-in
Max Power Consumption: 775W
Typical Power: 745W
Smart Energy Saving (70%): 280W
DPM Mode: 0.5W (DP, HDMI)
Power Off: 0.5W
BTU: 2,644
Certification
Safety: CB / NRTL
EMC: FCC Class A / CE / KC / VCCI
Languages (OSD)
Supports 20+ languages including English, French, German, Spanish, Chinese (Simplified & Traditional), Korean, Japanese, Portuguese, Arabic, Russian, Turkish, and more
Accessories (Included)
Remote Controller (with 2× batteries)
Power Cord
HDMI Cable
RS-232C Gender Adapter
User Manuals (EIG, IG)
