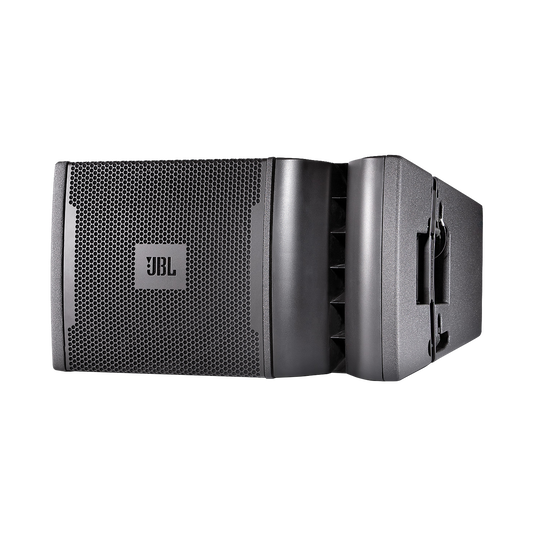

JBL VRX932LA-1 – 12" Two-Way Line Array Loudspeaker System
Designed for professional sound reinforcement, the JBL VRX932LA-1 delivers powerful and precise audio in a compact, arrayable form. With its Differential Drive® woofer, three HF drivers, and Constant Curvature waveguide, it ensures uniform vertical coverage and high SPL for live events, venues, or touring setups.
Product Specifications
System Type: 12″ Two-Way Line Array Loudspeaker
HF Drivers: 3 × 2408J Annular Ring Diaphragm
LF Driver: JBL Neodymium Differential Drive® Woofer
Waveguide: Constant Curvature for smooth vertical coverage
Nominal Coverage Pattern: 100° x 15°
Frequency Range (-10 dB): 57 Hz – 20 kHz
Frequency Response (±3 dB): 75 Hz – 20 kHz
Maximum SPL (Peak): 130 dB
Sensitivity: 95 dB SPL (1w/1m)
Impedance: 8 ohms
Power Handling:
Continuous: 800 W
Peak: 3200 W
Construction:
Enclosure: 18 mm, 11-ply birch plywood
Finish: Black DuraFlex™
Grille: Powder-coated 16-gauge steel with acoustic foam
Mounting Options:
Dual-angle pole-mount socket
M10 suspension points
Compatible with VRX932LA-AF array frame
Dimensions (W × H × D):
597 mm × 349 mm × 381 mm
23.5 in × 13.75 in × 15 in
Weight: 21 kg (46 lbs)
Additional Features:
JBL professional tunings and presets
Compatible with VRX932LA series for mixed arrays
