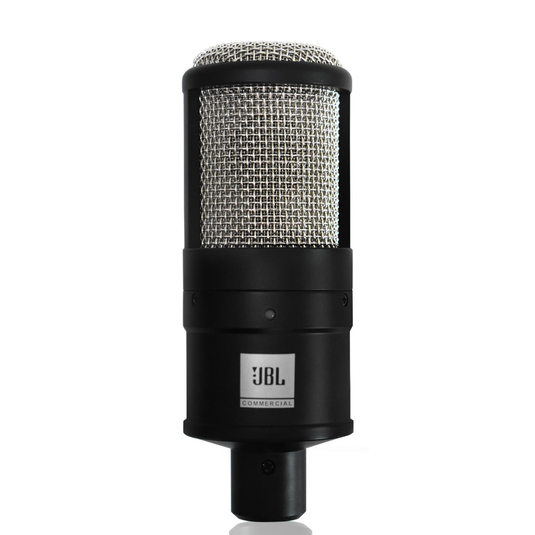

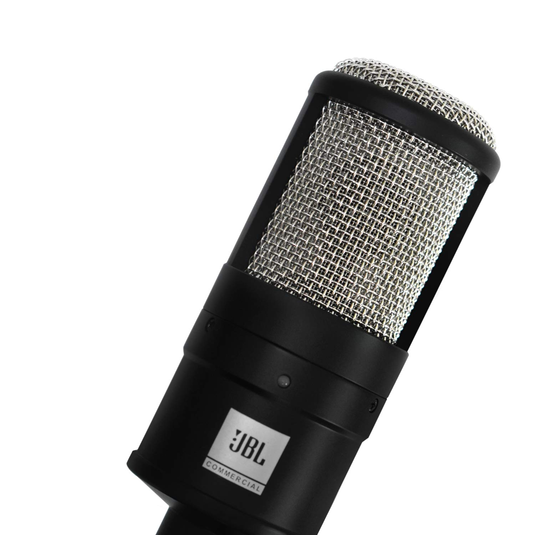

JBL Commercial CSSM100 – Studio Condenser Microphone
The CSSM100 is a versatile studio condenser microphone designed for both vocal and instrument recording. With a hypercardioid pickup pattern, rugged metal build, and wide frequency response, it’s ideal for professional recording, live performances, or studio sessions. It requires 48V phantom power and offers clear, high-fidelity sound capture.
Product Specifications
Transducer: 14mm condenser capsule
Polar Pattern: Hypercardioid
Frequency Response: 20 Hz – 20 kHz
Sensitivity: -36 dBV ±3 dB (0 dB = 1V/Pa at 1 kHz)
Equivalent Noise Level: ≤ 24 dBA
Peak SPL: 110 dB (THD ≤ 1% at 1 kHz)
Electrical Impedance: 100 Ω
Phantom Power Requirement: +48V ±4V
Current Consumption: 3 mA
Operating Temperature Range: -40°C to 55°C
Dimensions: Diameter 54 mm, Length 148 mm
Weight: 383 g
