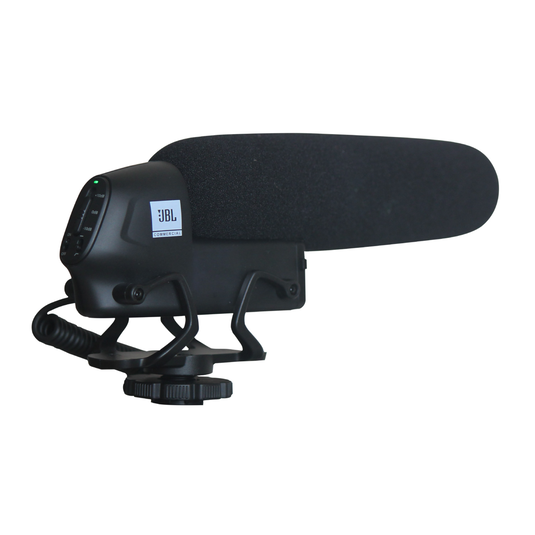

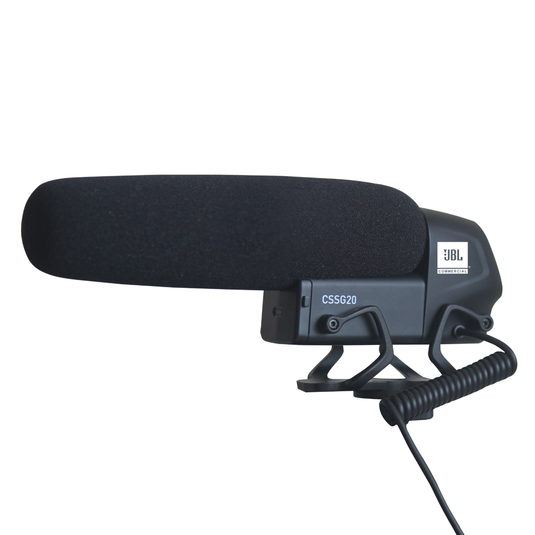

JBL Commercial CSSG20 – On-Camera Shotgun Microphone
The CSSG20 is a compact and reliable shotgun microphone perfect for on-the-go content creation. Whether you’re vlogging, filming interviews, or capturing event footage, this mic ensures crisp audio with a supercardioid pickup pattern and integrated shockmount. Compatible with both cameras and smartphones, it’s built for clarity and convenience during long shoots.
Product Specifications
Transducer: 10mm condenser capsule
Polar Pattern: Supercardioid
Frequency Response: 50 Hz – 16 kHz
Sensitivity: -25 dB ±3 dB (0 dB = 1V/Pa at 1 kHz)
Gain Adjustment: -10 dB / 0 dB / +10 dB
High-Pass Filter: 200 Hz, 12 dB/oct
Output Impedance: 2.2 kΩ ±30%
Power Supply: 1.5V AA battery
Outer Dimensions: L 157 mm × H 48 mm
Tube Dimensions: Diameter 11 mm × Length 120 mm
Net Weight: Approx. 75 g
